One-machine three-position bottom loading system for CNPC Huizhou Daan Oil Depot

One-machine three-position bottom loading system for CNPC Huizhou Daan Oil Depot

Project Description

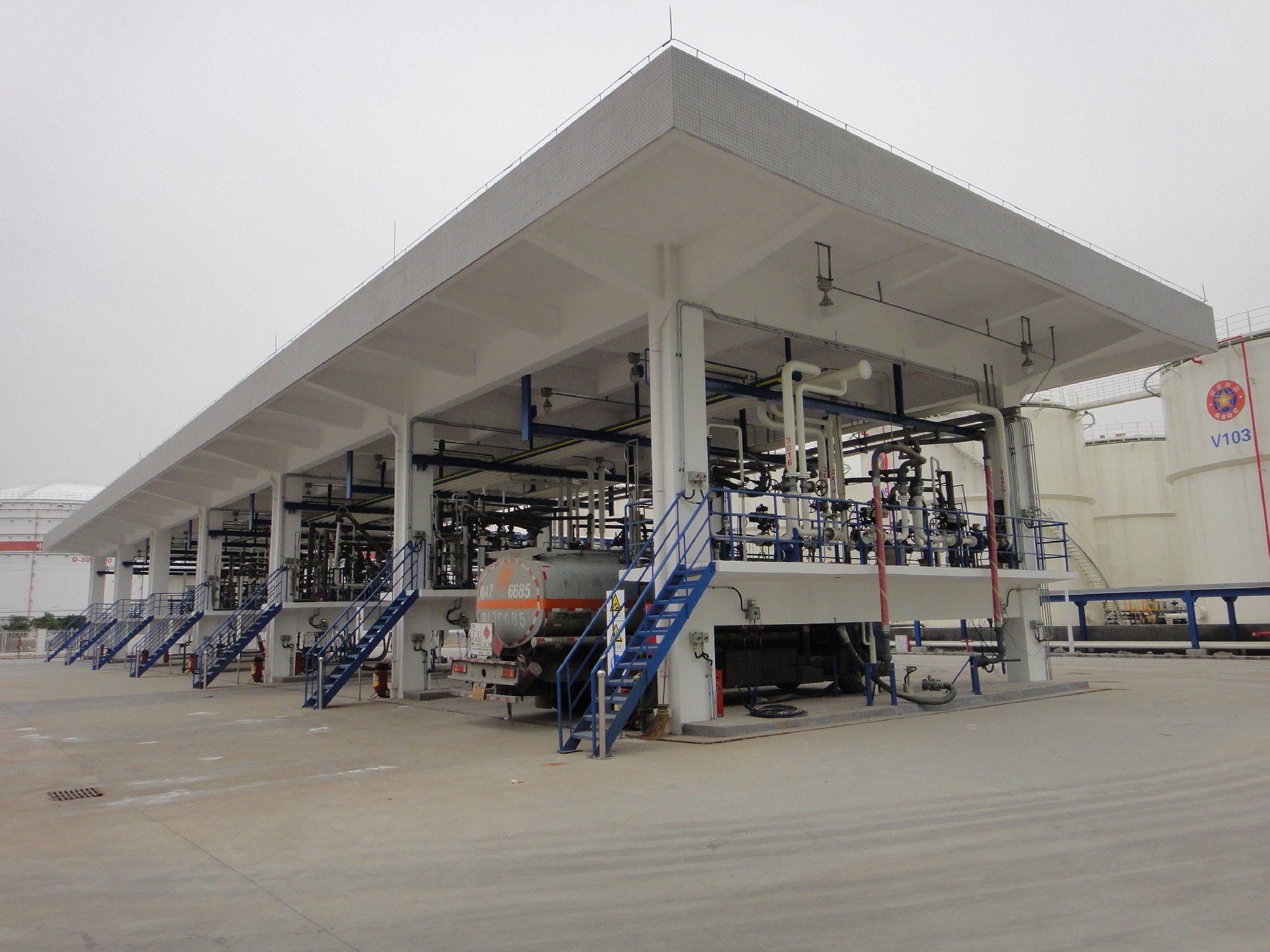

CNPC Huizhou Da'an Oil Depot is located in the Tsuenwan Petrochemical Zone in Daya Bay, Huizhou. It is a warehousing enterprise mainly engaged in the storage and transportation of refined oil. There are a total of 2 loading stations in this area, which need to realize the function of simultaneous loading of 92# gasoline, 95# gasoline and 0# diesel.

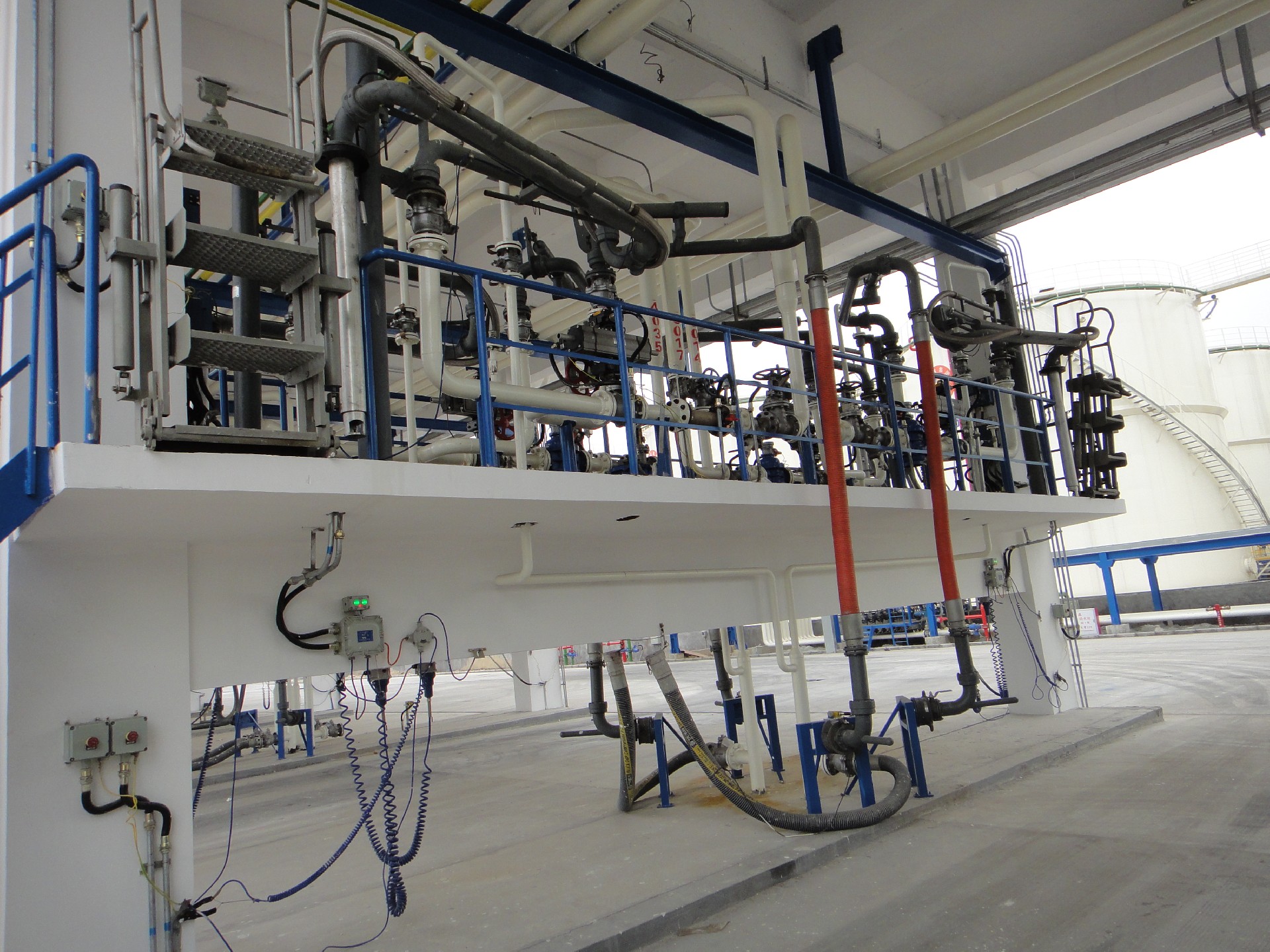

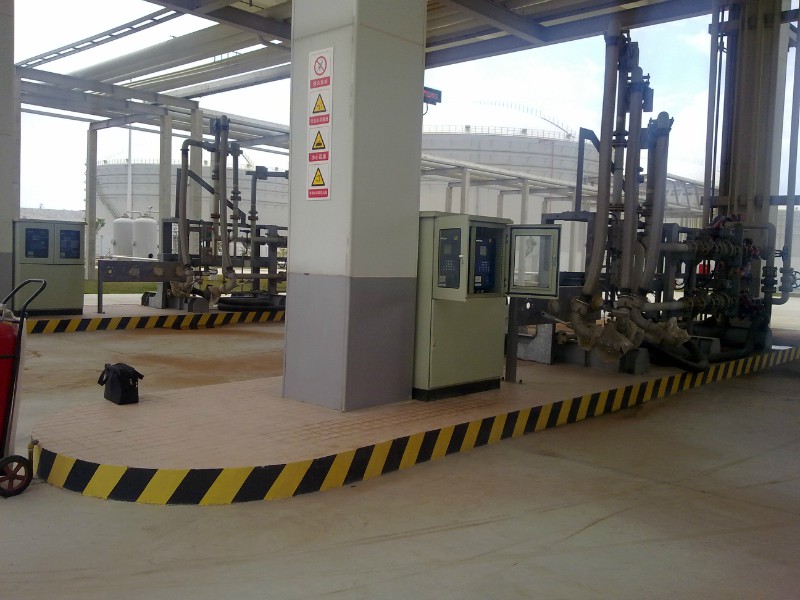

According to user requirements, it is designed as a one-machine three-position bottom loading control system to realize the simultaneous loading of three media. Each loading arm is equipped with a volume flow meter, an electro-hydraulic valve, a loading pump, and 3 loading arms Common-a set of electrostatic oil spill protector, equipped with a set of operating stations in the loading control room to realize loading monitoring and management software.
