The integration of batch controller, flowmeter, control valves, pipelines, loading arm, cables, grounding and overfill protector etc. on an integrated steel structure platform. The skid will prepare process connections and control power, communication interface for user

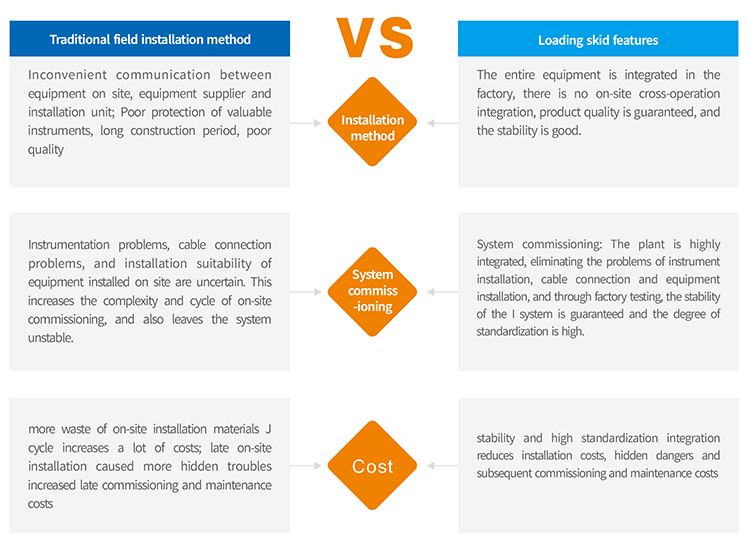

Comparison of traditional field installation and skid


Conventional oil and chemical skid By type of use

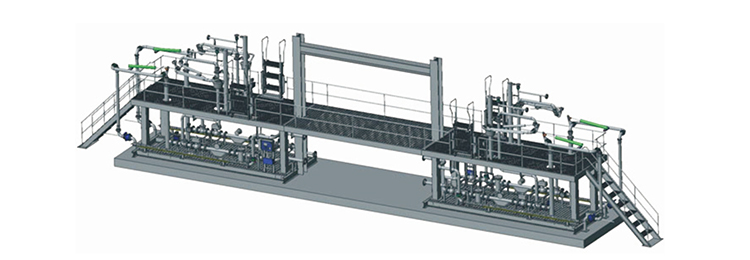

(1)Top loading skid mounted

The top skid-mounted means skid-mounted platform which is used as a skid-mounted assembly provided by the entire skid-mounted frame, and its entire skid level is divided into the following structural parts:

1.Steel skid frame

2.Internal process pipeline

3.Skid mounted platform

4.Bobbin platform fence

5.Skid ladder

6.All equipment in the skid: batch controller low metercontrol

7.valvestatic oil spill protectorcrane pipectivity ladder


(2)Bottom loading skid

The bottom loading skid is provided by the entire armored frame, suitable for the bottom loading vehicle medium,generally the gas-liquid two-phase medium and other required bottom loading and unloading vehicle media; the wholemodule is divided into the following Several parts

1.steel skid frame

2.inner pipe line and cable

3.skid frame

4.All instruments and equipment in the skid such as: batch controller low meter/ control valvestatic grounding and overfill protectorloading arm


(3)Simple skid

   The simple loading skid is suitable for the existing loading platform and frame on site. It only needs to integrate some parts of the automated loading equipment into a small skid group. The whole skid is divided into the following parts:

1.steel skid frame

2.inner pipe line and cable

3.All instruments and equipment in the skid such as: batch controller control valve low meter/static grounding and overfill protectorloading arm


(4)Movable loading skid

The movable loading skid is suitable for the loading platform which is not fixed on site. The Skid-mounted system group is made into a movable skid, and the skid has a movable structural device, and the whole skid is divided into the following parts:

1.steel skid frame

2.inner pipe line and cable

3.All instruments and equipment in the skid such as: batch controller control valve low meter/static grounding and overfill protectorloading arm



Technical Parameters
ConditionNew
Dimension(L*W*H)4000x1500x1400mm
MediumWater, Gas, Oil, LNG, LPG
ApplicationChemical liquid industry,petrochemical industry
Capacitycustomized
Weight2.5~3 Ton
Usagestore and transport oil, beverage, medicine, chemical, etc.
Material20# steel, 304, 316, stainless steel
Functionstore and convey products,widely used
Process FluidLOX/LIN/LAR / Expand Perlite Gas Storage Tank
