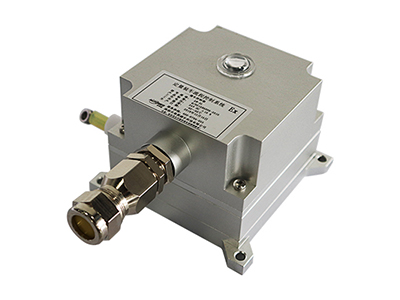

Slide the car alarm

Characteristics

Inquiry

  • Description
  • Inquiry

Product description

AW–CSSlide the car alarm,mainly matching batching controller,The moving alarm distance can be set on the sliding car alarm,In the process of loading, once the moving distance of a tanker exceeds the set value, the loading instrument immediately closes the valve, shuts off the pump, and stops loading, realizing effective loading safety interlock control.


Product feature

(1) The controller is an intrinsically safe instrument with ultra-low power consumption.

(2) The structure is small and the installation space is small.

(3) Long measuring stroke (1001300mm optional), high accuracy (0.3%FS), protection grade IP65.

(4) The shell and the reel are treated with anti-corrosion, and the traction rope is made of stainless steel and coated with Teflon, which can work in harsh environments.

(5) Optional output modes are: current, absolute pulse type.


Technical Parameters

Input voltage

24VDC

Working current

<40mA

Explosion-proof grade

ExdiaⅡBT6Gb

Output signal

4~20mA

Maximum allowable stretching speed

1000mm/s

Traction

Max900g

Shock

10

Weight

1000g
