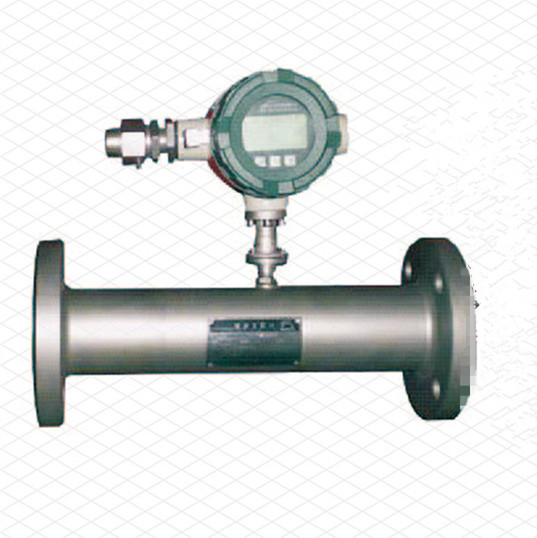

Turbine flowmeter

Characteristics

Inquiry

  • Description
  • Inquiry

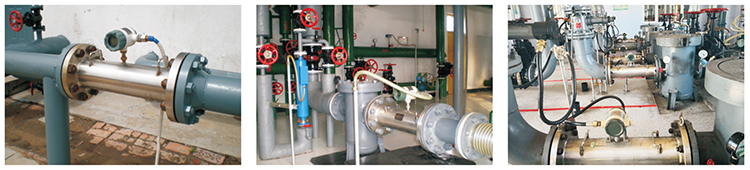

The turbine flowmeter is a flow meter with high repeatability and precision for flow measurement of various liquid industrial media. Its unique structure not only ensures the metering performance of the flow meter, but also improves the adaptability to the fluid. Highprecision flow measurement for mediums with wide viscosity and small solid content, such as crude oil, oily sewage, diesel, gasoline, light oil, corrosive chemicals, etc


Main Feature

Simple and lightweight structure, single rotating component (screw rotor), easy to install and maintain

Long service life, wear-resistant bearing material and unique structural design to ensure that bearings will not be damaged by hard objects

Low pressure drop; linearity viscosity change has little effect

The unique structural design ensures the smooth flow of fluid under various conditions;

The influence of pressure fluctuations will not affect the metering accuracy of the flowmeter;

Excellent mechanical properties of high temperature and high pressure resistance;

Stainless steel metering parts to avoid corrosion of the flowmeter when the water content is high or there is a corrosive component


Working principle and structure

The flowmeter uses a structure similar to that of a turbine flowmeter, and the rotor portion that senses the flow is completely different. The spiral wheel flowmeter uses a two-bladed spiral rotor, and the rotational speed in the true working state is proportional to the flow velocity (volumetric flow) of the fluid. The special structure of the spiral impeller makes it less sensitive to changes in the viscosity of the fluid during flow measurement and almost insensitive to changes in fluid density



Technical Parameters
Nominal diameter(mm)40、50、80、100、150
Allow basic error(%)±0.2、±0.5、±1.0
Allow working pressure(Mpa)1.6、2.5、4.0
Medium temperature(℃)

-40~+150℃

Medium viscosity(Mpa·s)0.6--200
EX gradeEXdIIB T6
Main material304、306、HC…
