portable fuel station

Characteristics

Inquiry

  • Description
  • Inquiry

1. Description

This is a kind of innovative fuel system combined with above-ground fire and explosion resistant tank, dispenser and automatic fire suppression device.

Integrated equipment, an area of small, but fully equipped with all the features of the gas station.

图片1.png                                   mobile fuel station                                                                                    PetroChina mobile fuel station


                           STO Express mobile fuel station                                                                            CNAF mobile fuel station


2. Type and structure

Type A: Single wall with a standard container

Used Internal ignition suppression system




Type 2: Double wall with two type anti-explosion suppression system



3.Applications

1.  Transportation Industry              (i.e. Logistics fleets)

2.  Public Transit Industry                (i.e. automobile fuel stations)

3.  Mining Industry                          (i.e. Mining motorcade)

4.  Port Marina & Yacht Club          (i.e. marine fuel ports)

5.  Industrial Park

6.  Construction Project

7.  Airport Vehicles


4.  Features

1)  Safety explosion-proof: flame-proof explosion-proof effect is good, heat radiation.

2)  Safety and high reliability: the use of barrier explosion-proof device.

3)  Without additional auxiliary equipment, low operating costs.

4)  Fully functional: can be one, two or three different kinds of oil, and can be

configured to meet the different oil filling methods.

With a comprehensive accident prevention and monitoring system.

5)  Easy to install, build time just 1 to 3 days.

6)  Small footprint, removable.

7)  Environmental protection and energy conservation.

8)  ln addition to static electricity.

9)  Maintenance is simple.



5.Major Technical Specification

NameSingle/Double wall Portable/mobile/Skid-mounted fuel station
Explosion-proof technologyInternal ignition suppression system
Size20/40 feet container
Tanker MaterialQ235-B Carbon steel
Oil productDiesel, gasoline, or both
Capacity15000L (20ft), 40000L(40ft)
Working temperature-15〜+50。 C
DispenserDouble nozzle
Installation modeOutdoor, skid mounted fixation
Oil pump maximum oil supply666L/min.

Tank work pressure

0.1MPa
Working voltage380V
Working power rate15KW
Total weight/unit container25 Ton
Overall sizes/unit containerAccording to the container size
Application standardUL-142/NFPA30A
OthersCustomized


20ft/40ft/45ft container One product with 1 dispenser图片8.png

20ft/40ft/45ft container Two products with 1 or 2 dispensers


20ft/40ft/45ft container Three products with 1 or 2 dispensers



6. Configuration list

Anti-explosion mobile fuel station (diesel and petrol with 1 dispenser 2 nozzels)


NO
ItemUnitNote
1
Single/double wall tank1Q235B carbon steel,6mm/8mm
2Internal ignition suppression system2
3Barrier explosion-proof system11 set
4Oiling machine12 nozzles
5Metal flexible connecting pipe

1


6Suspension type automatic dry powder fire extinguishing device18 Kg
7Emergency pressure relief device2DN150
8High level oil unloading anti overflow device2Chinese standard
9Automatic oil break protection valve175 °C
10Vacuum pressure fire breathing valve2DN50
11Filling oils device2

Chinese standard

12fast connector2Chinese standard
13Stainless steel filter2Chinese standard
14Dust cover2Chinese standard
15Explosion-proof intelligent magnetostrictive liquid level meter1
Chinese standard
16Explosion proof type magnetostrictive liquid level probe2Chinese standard
17Oil measuring device2DN100
18Explosion proof closed pipe system1Chinese standard
19The explosion-proof power distribution system1Chinese standard
20Primary oil gas recovery system1Chinese standard
21Twice oil and gas recovery1Chinese standard
22
Others

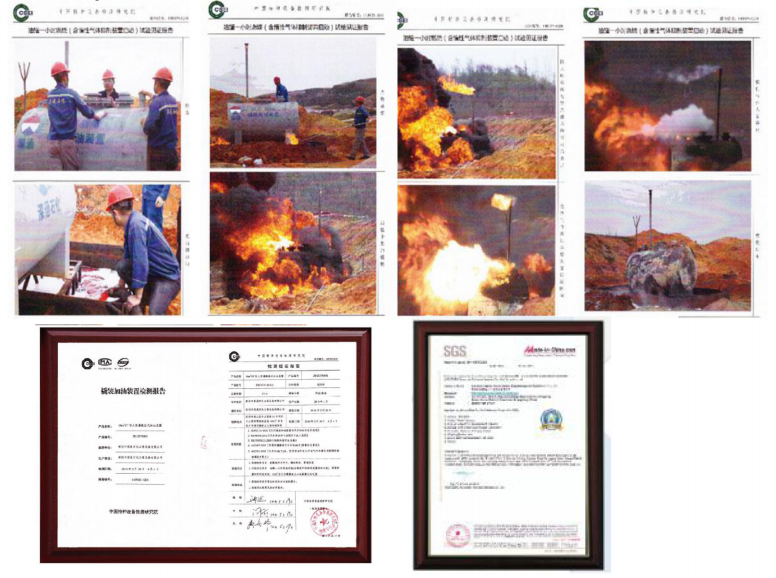

7. Certificates

1. ISO 9001                               2. ISO 14001

3. OHSAS 18001                        4. SGS

5. Inert Gas Suppression Explosion-Proof Device Patent

6. Safety Inspection Report of Portable Fuel Device by China Special Equipment Inspection and Research Institute


Inert Gas Suppression Explosion-Proof Device inside the Portable Fuel Tank Patent

Double Explosion-Proof Portable Fuel Device Patent




8. Product advantages

1) Safety. (Fire-proof and Explosion-proof)

2) Payback fast. (Cost lower)

3) Time Saving. (Portable station can be active in a very short time)

4) Space saving. (Individual fuel station just required small space)

5) Portable.

6) Energy conservation and environmental protection.

7) Easy Maintenance.

8) Meeting standards.(Satisfied GB50156, SH/T3134 requirement)
